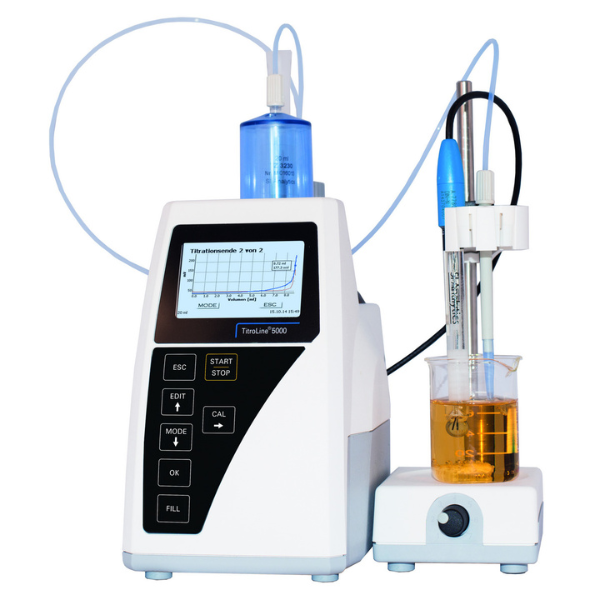

Automatic Titrators TitroLine 5000

Description

Automatic Titrators TitroLine 5000 –  LLG09863184

-Following titration modes are possible:
-Titrations to pH, mV and µA endpoint (2 EP)
-Titrations to one equivalence point (pH und mV) with dynamic or linear titration addition
-Manual titrations with the controller
-Dosing tasks
-Number of methods: 5

Typical applications for the TitroLine® 5000 are:
-Salt content in foodstuffs (cheese, soy sauce, ketchup)
-Total acidity in wine and beverages
-Nitrogen according to Kjeldahl
-Chloride in drinking water and other samples
-Alkalinity (p + m-value)
-FOS/TAC

Supplied with:
TL 5000/20 M1: Basic unit without electrode, with ready to use assembled 20 ml dosing unit TZ 3130 with hoses, fittings and titration tip, controller TZ 3880, titration clamp Z 305, stand rod TZ 1748 magnetic stirrer TM 50 and power supply 100-240 V
TL 5000/50 M1: as TL 5000/20 M1, only with ready to use assembled 50 ml dosing unit TZ 3160
TL 5000/20 M2: as TL 5000/20 M1, additionally with pH combination electrode and buffer set
TL 5000/50 M2: as TL 5000/20 M2, only with ready to use assembled 50 ml dosing unit TZ 3160
TL 5000/20 M3: as TL 5000/20 M1 additionally with Ag electrode and electrode cable
Specifications
Measuring input electrode pH/mV-input with DIN or BNC socket
Measuring input Pt 1000/NTC 30: Temperature sensor connection for resistance probes Pt 1000 or NTC 30 (socket: 2 x 4 mm)
Interfaces: 1 x USB A und 1 x USB-B
2 x RS-232-C
Stirrer connection: TM 50 power supply directly through piston burette
Keyboard: The unit is operated using the keys on the device itself, the controller TZ 3880 and optional PC-keyboard (USB)
Display: graphics-capable TFT display
Dosing units: 20 ml or 50 ml dosing unit, interchangeable
Burette resolution: 8000
Dosing accuracy: systematic error 0.15 %, random error 0.05 % in compliance with EN ISO 8655-6
Supply requirements: 230V, 50/60Hz
Conformity: ISO 8655, part 6
CE-mark: EMC: 2004/108/EG; safety EG- Directive 2006/95
