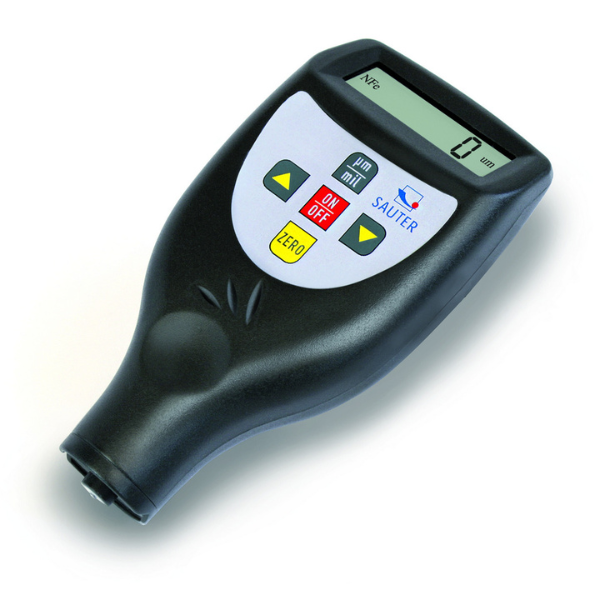

Coating thickness gauge, digital, TC / TE / TG

Description

Coating thickness gauge, digital, TC / TE / TG –  LLG06270968

-Ergonomic design for easy handling
-Data interface RS-232, included
-Base plate and calibration foils included
-Delivered in a hard carrying case
-Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of approx. 1 % of the measured value
-Selectable measuring units: µm, ml

Coating thickness gauge TC:
-With integrated sensor

Coating thickness gauge TE:
-External sensor for difficult-to-access measurements
-Auto-Power-Off

Coating thickness gauge TG:
-External sensor for difficult-to-access measurements
-LCD display, backlit, display of all information at a glance
-Scan mode allows continuous measurement or single point measuring mode
-Mini Statistics Kit: displays the measured result, the average value and the max and the min value
-Internal memory up to 99 values
Specifications
Measuring range: 100 µm / 1250 µm
Readability: 0,1 µm / 1 µm
Precision
Standard: 3 % of measured value or ± 2,5 µm
Offset-Accur: 1 % of measured value or ± 1 µm
Minimal base thickness: 0.3 mm
Dimensions (W x D x H) TC, TE / TG: 65 x 28 x 131 mm / 65 x 35 x 126 mm
Net weight: approx. 81 g
Power supply TC, TE / TG: incl. 4 x 1.5 V AAA / 2 x 1.5 V AAA batteries
