Combi shaker KL 2

0,00 د.إ

SKU: N/A Categories: , , Tags: , Brand:

Combi shaker KL 2 –  LLG09838320

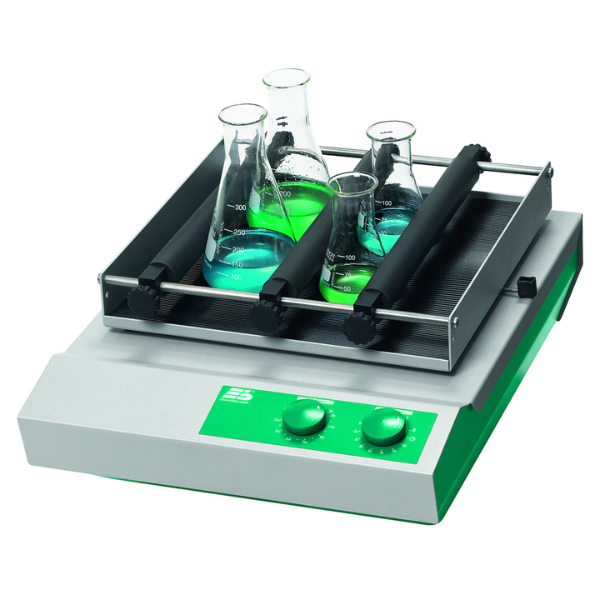

Mini shaker which can be switched between orbital and reciprocating motions.

Available Options

ThumbnailDescriptionProduct CodeContinuous operationDepthDepth of the moving tableDimensionsHeightInclination angleMax. permitted ambient tempMax. speedMin. permitted ambient tempMin. speedMotor rating inputMotor rating outputNet weightMaximum loadPermitted relative humidityPlug typeProtection classShaking stroke / Shaking orbitTouch operationTypeType of auxiliary energyType of movementWidthWidth of the moving tableMax. Runtime / TimerMin. Runtime / TimerPackaging
Combination shaker KL 2,reciprocat.motion speed: 30 - 420 rpm, platform:300 x 300 mm with attachment system with 3 clamping rollLLG09838320Yes455 mm300 mm355 x 455 x 195 mm195 mmN/A50 °C420 rpm5 °C30 rpmN/AN/A135 kg2 kg85%EUN/A8 mmN/AKL 2230 V/50/60 Hz/125 VAorbital, back and forth355 mm300 mm02:00:00 h:min:sec00:00:00_h:min:sec1 pz

Description

Combi shaker KL 2 –  LLG09838320

Includes flask attachment system with 3 clamping rollers. Versatile, for use in medical diagnostics, haemotology, for cell cultivation or analysis. Max. load 4 x 500 ml or 2 x 1000 ml Erlenmeyer flasks.

Scope of supply: Shaker and accessory platform with 3 clamping rollers and anti-slip mat.
Speed range: 30 … 420 rpm with stepless electronic adjustment
Orbit or stroke: 8 mm
Max. loading: 2 kg
Platform (W x D): 300 x 300 mm
Timer: 0 … 120 min / continuous
Overall (W x D x H): 355 x 455 x 195 mm
Weight: 13,5 kg
Supply requirements: 230 V, 50/60 Hz
Protection class: IP 21

Combi shaker KL 2

Additional information

Product Code

LLG09838320
Continuous operation

Yes
Depth

455 mm
Depth of the moving table

300 mm
Dimensions

355 x 455 x 195 mm
Height

195 mm
Inclination angle

N/A
Max. permitted ambient temp

50 °C
Max. speed

420 rpm
Min. permitted ambient temp

5 °C
Min. speed

30 rpm
Motor rating input

N/A
Motor rating output

N/A
Net weight

135 kg
Maximum load

2 kg
Permitted relative humidity

85%
Plug type

EU
Protection class

N/A
Shaking stroke / Shaking orbit

8 mm
Touch operation

N/A
Type

KL 2
Type of auxiliary energy

230 V/50/60 Hz/125 VA
Type of movement

orbital, back and forth
Width

355 mm
Width of the moving table

300 mm
Max. Runtime / Timer

02:00:00 h:min:sec
Min. Runtime / Timer

00:00:00_h:min:sec
Packaging

1 pz
