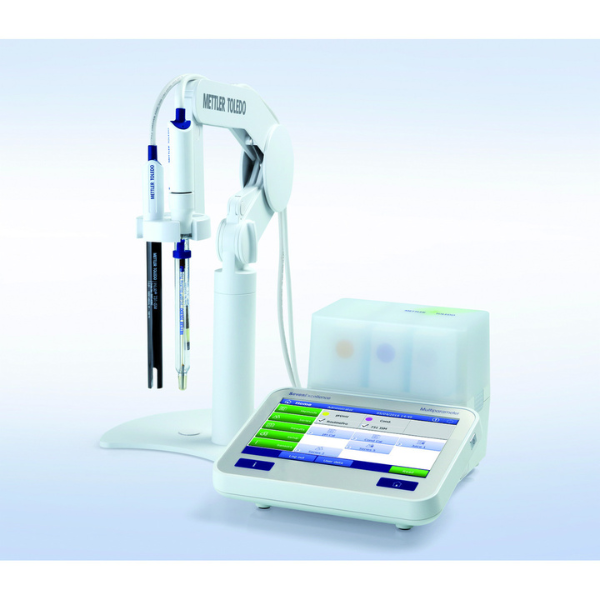

Conductivity meter SevenExcellence S470

Description

Conductivity meter SevenExcellence S470 –  LLG09704361

-Large, high resolution 7” colour touch display (capacitive), very clear and easy to operate
-Modularity and flexibility; up to 3 measuring modules can work in parallel, expansion to 3 channels possible
-Universal communication via 2 x USB, Ethernet (LAN) and RS232
-Plain text user interface in 10 languages with menu guidance in full sentences
-OneClickä operation concept to quickly start frequently used functions and preferred methods
-Storage for user methods
-Highest security and GxP support (ID protection, sophisticated user management, limits / alarms, integrated radio clock, etc.)
-Intelligent sensor management (ISM®)
-Connection of stirrer, sample changer, PC, barcode reader, keyboard, local or network printer possible
-Storage up to 20000 data sets (measurements, calibrations, methods)
-17 predefined, 60 user-defined methods
-5 point calibration (pH), 13 pre-defined and 20 user-defined buffer groups, incl. temperature chart
-uPlaceä electrode arm with perfect vertical movement
-Compatible with all METTLER TOLEDO electrodes (Recommended: ISM® electrodes)

Scope of supply:
S470-Basic: Includes instrument, 1 x conductivity expansion unit, 1 x pH/mV expansion unit, 1 x blank expansion unit, uPlaceä electrode holder, semi-transparent cover, operating instructions, installation and quick guide, LabX® direct pH PC software, declaration of conformity, test certificate
S470-Kit: As S470-Basic but with InLab® Expert Pro-ISM, guide to pH measurements, 2 buffer sachets for pH 4.01, 7.00, 9.21 and 10.00.
S470-USP/EP: As S470-Kit but with InLab® 741-ISM instead of InLab® 731-ISM and InLab® Pure Pro-ISM instead of InLab® Expert Pro-ISM, BNC/RCA-MultiPinä ISM-cable (1.2 m), without 1413 µS/cm and 12.88 mS/cm calibration sachets
Specifications Measuring range // Resolution // Accuracy
Temperature MTC/ATC: -30.0 … 130.0 °C // 0.1 °C // ± 0.1 °C
pH: -2.000 … 20.000 // 0.001 / 0.01 / 0.1 // ± 0.002
mV: -2000.0 … 2000.0 // 0.1 / 1 // ± 0.1
Rel. mV: -2000.0 … 2000.0 // 0.1 / 1 // ± 0.1
ISFET pH: 0.000 … 14.000 // 0.001 / 0.01 / 0.1 // ± 0.05
Conductivity: 0.001 … 999999 µS/cm // 0.001 … 1 // ± 0.5%
0.001 … 2000 mS/cm // 0.001 … 1 // ± 0.5%
0.001 … 200 S/m // 0.0001 … 1 // ± 0.5%
0.001 … 200000 mS/m // 0.0001 … 1 // ± 0.5%
0.1 … 999999 µS/m // 0.001 … 1 // ± 0.5%
TDS: 0.001 … 1000 g/l , ppt // 0.001 … 1 // ± 0.5%
0.001 … 999999 mg/l , ppm // 0.001 … 1 // ± 0.5%
Salinity: 0.01 … 80.0 psu , ppt // 0.01 … 0.1 // ± 0.5%
Resistivity: 0.01 … 100.0 MW x cm // 0.0001 … 1 // ± 0.5%
0.01 … 999999 W x cm // 0.01 … 1 // ± 0.5%
Conductivity Ash: 0.000 … 2022 % // 0.001 … 1 // ± 0.5%
