Digital force gauge FH-S

(1 customer review)

0,00 د.إ

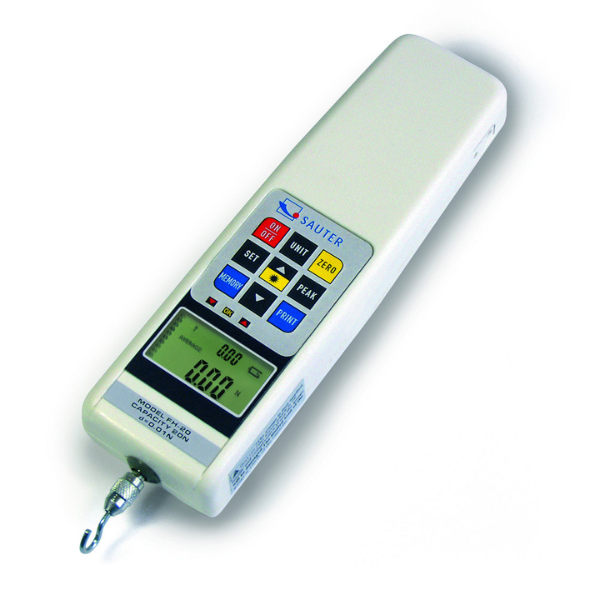

Digital force gauge FH-S
Universal digital force gauges for tension and compression tests.
With integrated measuring cell and RS-232 data interface

Available Options

ThumbnailDescriptionProduct CodeMeasuring range (max.)ReadabilityTypePackaging
Digital force gauge FH-S
Digital force gauge FH-S, Type FH 2.LLG062511172 N0.001 NFH 2.1 pz

Description

Digital force gauge FH-S –  LLG06251117
Features
-Turnable display with backlight
-Digital force gauge with internal sensor
-Data interface RS-232, included
-Delivered in a hard carrying case
-Selectable measuring units: N, lb, kg
-Peak-Hold function to capture peaks (measurement result will be ”frozen” for a short time) or Track function mode for a continuous measurement indication (period of time approx. 10 s)
-Function to set limits, programming of Max./ Min., in pull and push direction, with output of acoustic and optical signal. Ideal mode for efficient and accurate testing of standard parts
-Auto-Power-Off
-Internal memory for up to 10 measurements
-Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
-Can be mounted on all SAUTER test stands
Specifications
Resolution: up to 10,000 points (total measuring range)
Internal measuring frequency: 0.5 % of Max
Internal measuring frequency: 2000 Hz
Overload protection: 150 % of Max
Thread: M6
Dimensions (W x D x H): 66 x 36 x 230 mm
Net weight: approx. 0.64 kg
Power supply: Battery powered, internal
Digital force gauge FH-S

Does the Digital Force Gauge FH-S from Ordinals support both tension and compression testing?

Yes, the Digital Force Gauge FH-S from Ordinals is designed to handle both tension and compression measurements with high accuracy. Small business owners and wholesalers find it especially useful for diverse testing needs, as it delivers consistent readings and allows flexible use across different quality control applications.

LLG06270965 , LLG06270964 , LLG06270963, LLG06270964 , LLG06270962 , LLG06251117, LLG06251322 , LLG06270961
Ensure accurate and efficient force measurement with this advanced digital device designed for both tension and compression applications. Achieving precise force measurement is essential for maintaining product quality and consistency, and this advanced measuring device is designed to meet those demands across a wide range of applications. Built with a compact and ergonomic structure, it allows comfortable handling and efficient operation in both laboratory and industrial environments. The clear digital display ensures that readings are easy to interpret, helping users avoid errors and streamline their workflow. Its ability to measure both tension and compression makes it highly versatile for tasks such as material testing, packaging evaluation, and mechanical performance analysis. Small business owners, wholesalers, and retailers benefit from its reliable performance, as it supports accurate quality control processes and informed decision-making. The intuitive interface enables quick setup and smooth navigation through functions, reducing the learning curve for new users while maintaining efficiency for experienced operators. Engineered with durable components, it withstands frequent use and delivers stable, repeatable results over time. The lightweight design enhances portability, making it convenient to carry between different testing locations without compromising accuracy. Maintenance is minimal, and calibration can be performed بسهولة, ensuring consistent performance with minimal downtime. Suitable for use in manufacturing, research, and inspection environments, it helps improve operational efficiency and product reliability. By combining precision, ease of use, and long-term durability, this device serves as a dependable solution for professionals seeking consistent and accurate force measurement in their daily operations, ultimately supporting higher standards of quality and performance across various industries.

Additional information

Product Code

LLG06251117

Measuring range (max.)

2 N

Readability

0.001 N

Type

FH 2.

Packaging

1 pz
