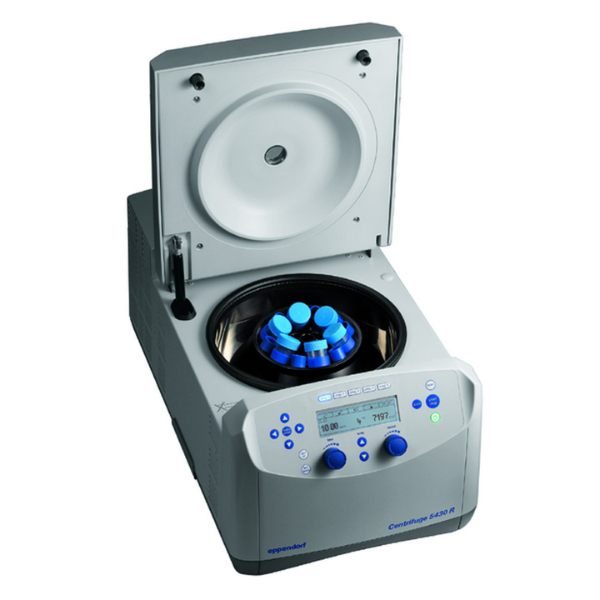

Microcentrifuge 5430 / 5430 R (IVD)

Description

Microcentrifuge 5430 / 5430 R (IVD)

These centrifuges are used with e.g. rotors for Eppendorf Tubes® and PCR strips, rotors for microplates and 15/50 ml conical tubes, as well as a 48-place rotor, a 16-place rotor for Eppendorf Tubes® 5.0 ml and a swing-out rotor (24 x 1.5 / 2.0 ml).

Microcentrifuge 5430
-Choice of 8 different rotors, e.g. MTP rotor, Falcon rotor for max. versatility
-48 place centrifuge for 1.5ml/2.0ml micro test tubes, 6 x 50ml Falcon® tubes or 2 x MTP plates
-Unique 30 130xg
-Automatic rotor recognition
-Stores up to 50 routine programs
-Menu guided operation in 4 different languages
-Automatic lid opening following application sequence (only 5430)

Microcentrifuge 5430 R, additional features:
-Temp. range: -11°C to +40°C
-+4°C at max. speed with all rotors
-Continues cooling after the centrifugation process
-Fast Temp for achieving required temperature in shortest possible time
-Fast Temp pro for having the centrifuge refrigerated and ready-for-use at your desired pre-set time

Specifications 5430 // 5430 R
Max. RCF 30,130 x g
Max. speed: 17,500 rpm
Max. capacity: 48 x 1.5/2.0ml or 6 x 50ml or 2 x MTP
Cooling temperature: – // -11 … +40 °C
Timer: 30 s to 99:59 h, with continuous run
Power consumption: 475 W // 1050 W
Dimensions (W x D x H) 330 x 420 x 250 mm // 380 x 640 x 290 mm
Weight: 29 kg // 56 kg
Power supply: 230 V, 50/60 Hz

LLG09776730, LLG09776731, LLG09776732, LLG09776733, LLG09776734, LLG09776735, LLG09776736, LLG09776737
Engineered for modern laboratory environments, this advanced centrifugation system offers dependable performance, precision control, and efficient processing for a wide range of scientific and diagnostic applications. Designed to handle small sample volumes with exceptional accuracy, the system supports routine laboratory procedures while maintaining consistent and reliable results. Its powerful motor technology enables rapid rotational speeds that allow effective separation of biological components, ensuring that laboratories can process samples quickly without compromising quality or stability. The compact structure makes it ideal for laboratories where workspace is limited, while still providing the performance level required for demanding workflows. The intuitive digital control interface allows users to easily set operational parameters such as speed, time, and temperature where applicable, enabling technicians to perform procedures with confidence and repeatability. A clear display panel provides real-time monitoring of the operating conditions, helping users maintain precise control throughout the centrifugation cycle. Stability and smooth operation are important aspects of the design, with balanced mechanical construction that reduces vibration and noise during operation. This contributes to a more comfortable laboratory environment and ensures that sensitive samples remain undisturbed throughout the process. Flexibility is another important advantage of this equipment, as it is compatible with multiple rotor configurations and accessories that allow laboratories to process different tube sizes and sample types. Whether used in clinical laboratories, biotechnology research facilities, or academic institutions, the system supports diverse workflows and adapts easily to changing laboratory requirements. Safety is carefully integrated into the design through several protective features that safeguard both the operator and the samples. Automatic lid locking prevents accidental opening during operation, while imbalance detection systems help maintain stability and protect the equipment from potential damage caused by uneven sample loading. Controlled acceleration and deceleration functions further protect delicate samples from sudden movement or stress, which is particularly important in procedures involving fragile biological materials. Durability and long-term reliability are also key characteristics of this system. Constructed from high-quality materials, the chamber and internal components are designed to withstand frequent use in busy laboratory environments. The surfaces are easy to clean and resistant to corrosion, supporting proper laboratory hygiene and simplifying routine maintenance. Laboratories often require equipment that can deliver consistent results day after day, and this centrifugation system is engineered to meet those expectations. Its efficient design allows continuous operation with minimal downtime, supporting productivity in laboratories where time and accuracy are critical. The thoughtful combination of performance, convenience, and safety ensures that laboratory professionals can rely on the equipment for dependable sample processing across a wide variety of applications. By enabling accurate separation and preserving the integrity of valuable samples, this system plays an important role in supporting scientific research, diagnostic testing, and analytical procedures. Its reliable performance and adaptable design make it a valuable addition to laboratories seeking efficient and precise sample handling solutions.
