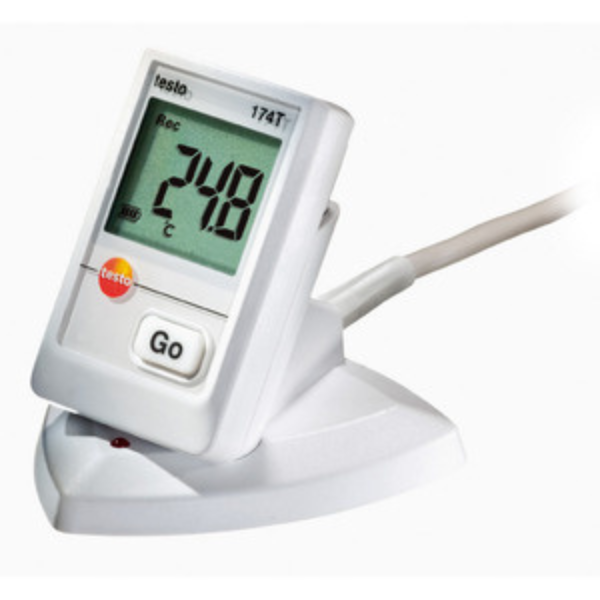

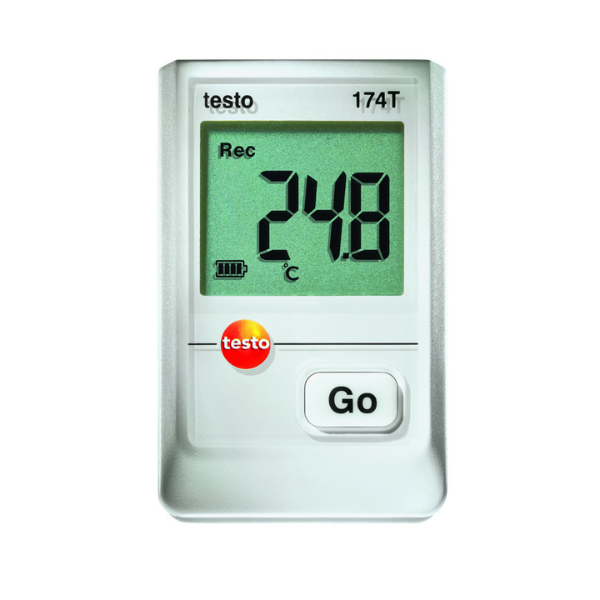

Mini data logger testo 174T

0,00 د.إ

Mini data logger testo 174T –  LLG07626604

The mini data logger for temperature, testo 174T, is ideal for accompanying transports. Simply positioned close to the goods, e. g. in containers and refrigerated rooms, the data logger monitors temperature continuously, securely and unobtrusively. The free software ComSoft testo 174 allows fast programming of the data logger and easy analysis.

Available Options

ThumbnailDescriptionProduct CodeAccuracy humidityAccuracy temperatureDepthDescriptionHeightMeasuring range end humidityMeasuring range temperatureNet weightProtection classRange start humidityRange start temperatureResolution humidityResolution temperatureStorage readingsTypeType of auxiliary energyWidthPackaging
Mini data logger testo 174T, Type testo 174T, Range start temperature -30 °CLLG07626604± % r.F.0.5 ± °C38 mmN/A185 mmN/A70 °CN/AIP 65% r.F.-30 °CN/A0.1 °C160002 x 3V round cell (CR 2032)testo 174TN/A1 pz

Description

Mini data logger testo 174T –  LLG07626604
-High data integrity, even with empty battery
-Large measurement data memory
-Watertight in accordance with IP65
-Compact and robust
-Conforms to EN12830
-Issue of alarms via display
-Data transfer to the PC via USB interface
-Reliable temperature measurement for the monitoring of sensitive goods and cold chain during storage and transport

Scope of supply:
testo 174T: Mini data logger, 1-channel, incl. wall bracket, battery (2 x CR 2032 Lithium) and calibration protocol
testo 174T-Set: Mini data logger, 1-channel, incl. USB interface for programming and reading out the logger, wall bracket, battery (2 x CR 2032 lithium), calibration protocol
Specifications
Probe type: Internal NTC temperature sensor
Measuring range: -30 to +70°C
Accuracy: ±0.5°C
Resolution: 0.1°C
Operating temperature: -30 to +70°C
Storage temperature: -40 to +70°C
Battery type: 2 x 3V button cell (2 x CR 2032 lithium),
can be changed by user
Battery life: 500 days (15 min measuring cycle, +25°C)
Protection class: IP65
Meas. cycle: 1min – 24h (can be selected)
Memory: 16000 readings
Software: can be used with Windows XP, Vista, Win7

Mini data logger testo 174T 1 Mini data logger testo 174T 2

Additional information

Product Code

LLG07626604

Accuracy humidity

± % r.F.

Accuracy temperature

0.5 ± °C

Depth

38 mm

Description

N/A

Height

185 mm

Measuring range end humidity

N/A

Measuring range temperature

70 °C

Net weight

N/A

Protection class

IP 65

Range start humidity

% r.F.

Range start temperature

-30 °C

Resolution humidity

N/A

Resolution temperature

0.1 °C

Storage readings

16000

Type

2 x 3V round cell (CR 2032)

Type of auxiliary energy

testo 174T

Width

N/A

Packaging

1 pz
