Orbital shaker KM CO2 / KM 2

0,00 د.إ

SKU: N/A Categories: , , Tags: ,

Orbital shaker KM CO2 / KM 2 –  LLG06285189

Available Options

ThumbnailDescriptionProduct CodeContinuous operationDepthDepth of the moving tableDimensionsHeightInclination angleMax. permitted ambient tempMax. speedMin. permitted ambient tempMin. speedMotor rating inputMotor rating outputNet weightMaximum loadPermitted relative humidityPlug typeProtection classShaking stroke / Shaking orbitTouch operationTypeType of auxiliary energyType of movementWidthMax. Runtime / TimerMin. Runtime / TimerPackaging
Small shaker KM CO2 with attachment, external control unitLLG06285189N/A340 mm295 mm230 x 340 x 145 mm145 mmN/A45 °C220 rpm4 °C5 rpmN/AN/A7.6 kg2 kg95%EUIP 2120 mmN/AKM CO2100 ... 240 V, 50/60 Hzorbital230 mm99:59:00 h:min:sec00:00:00_h:min:sec1 pz

Description

Orbital shaker KM CO2 / KM 2 –  LLG06285189

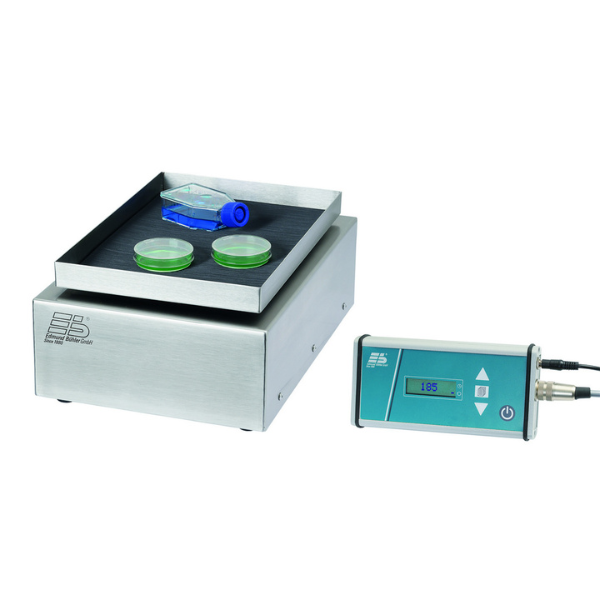

KM CO2 / KM CO2-FL: Stainless Steel Shaker especially for incubators with CO2 concentration.
Scope of supply: Shaker incl. basic platform with rubber mat and external control unit.

KM 2: Highly reliable shaker which requires little space.
Scope of supply: Basic device incl. basic platform and rubber mat.

Specifications
Type of movement: orbital
Orbit: 20 mm
Speed range: 5 … 220 rpm, in steps of 5
Max. Load: 2 kg
CO2 concentration (KM CO2): 20 %
Timer: 0 … 99 h 59 min / continuous
Power consumption: 4 W
Permissible ambient temperature: 4 … 45 °C
Length standard cable (KM CO2): 2000 mm
Length ribbon cable (KM CO2-FL): 1200 mm
Dimensions platform (B x T): 200 x 295 mm
Power supply: 100 … 240 V, 50/60 Hz
Protection class: IP 21
Orbital shaker KM CO2 KM 2

Additional information

Product Code

LLG06285189
Continuous operation

N/A
Depth

340 mm
Depth of the moving table

295 mm
Dimensions

230 x 340 x 145 mm
Height

145 mm
Inclination angle

N/A
Max. permitted ambient temp

45 °C
Max. speed

220 rpm
Min. permitted ambient temp

4 °C
Min. speed

5 rpm
Motor rating input

N/A
Motor rating output

N/A
Net weight

7.6 kg
Maximum load

2 kg
Permitted relative humidity

95%
Plug type

EU
Protection class

IP 21
Shaking stroke / Shaking orbit

20 mm
Touch operation

N/A
Type

KM CO2
Type of auxiliary energy

100 … 240 V, 50/60 Hz
Type of movement

orbital
Width

230 mm
Max. Runtime / Timer

99:59:00 h:min:sec
Min. Runtime / Timer

00:00:00_h:min:sec
Packaging

1 pz
