Overhead stirrer EUROSTAR 200 digital / 200 control

Description

Overhead stirrer EUROSTAR 200 digital / 200 control –  LLG09816715

It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/6 to 2000rpm (two speed ranges). Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

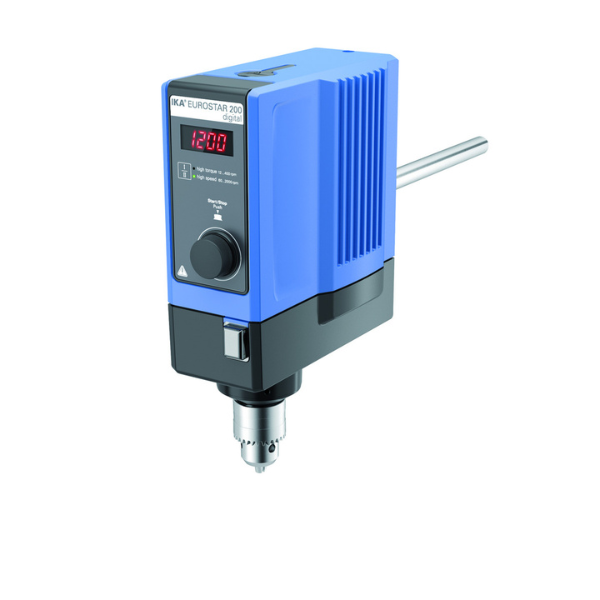

EUROSTAR 200 digital:
-Digital speed display
-Infinitely adjustable speed
-Push-through agitator shafts
-Overload protection
-Short-term overload operation
-Slim casing
-Quiet operation
-Error code display

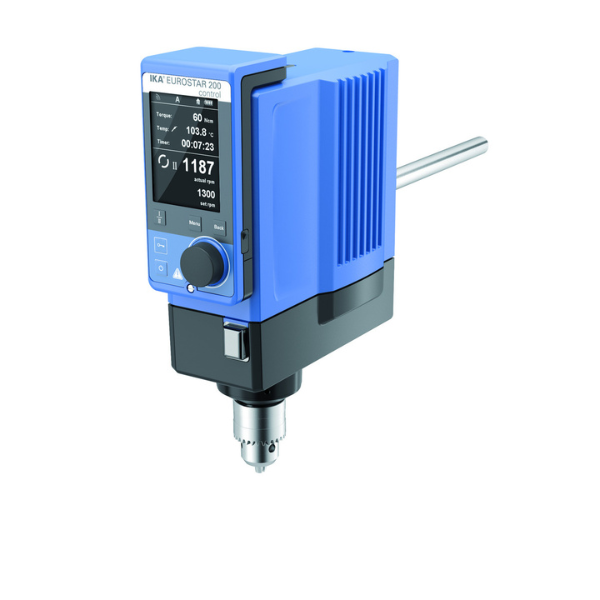

EUROSTAR 200 control additionally:
-Multilingual TFT display
-Detachable remote control
-Programmable functions
-Integrated temperature measurement
-Interval operation
-Timer function
-Adjustable safety circuit
-Locked function
Specifications
Stirring quantity max. (H2O): 100l
Max. viscosity: 100000mPas
Motor rating input/output: 130 / 84W
Speed range:
Speed range I (at 50/60 Hz):
Speed range II (at 50/60 Hz): 6 to 2000rpm
6 to 400rpm
30 to 2000rpm
Max. torque at stirring shaft: 200Ncm
Display 200 digital // 200 control: LED // TFT
Chuck range: 0.5 to 10mm
Dimensions (W x D x H) 200 digital // 200 control: 91 x 209 x 274 mm // 91 x 231 x 274 mm
Protection class DIN EN 60529
200 digital // 200 control:
IP 42 // IP 40
Power supply: 230V, 50/60Hz
EUROSTAR 200 control only:
Temperature measurement: PT 1000
Temperature measuring range: -10 to +350°C
