Platform Shakers Rotamax 120

Description

Platform Shakers Rotamax 120 –   LLG09839797

-An overtemperature sensor preventatively shuts off the unit in a dangerous heat-up situation, particularly valuable for you in case of continuous operation
-Insulated drive system prevents any heat-up coming from the motor and consequently thermal damage to your sample
-Designed with a low center of gravity which prevents gliding at high speed, even on a damp surface
-Set and continuously adjust the variable speed on the analog control knob for gentle mixing
-An analog process timer allows for unattended operation. When the set time has elapsed, an acoustic alarm will sound and the operation stops

Specifications
Type of movement: orbital
Orbit: 20 mm
Speed range: 20 … 300 rpm
Max. Load: 2 kg
Timer: 1 … 120 min
Power consumption: 33 W
Permissible ambient temperature: 5 … 31 °C
Permissible relative moisture: 80 %
Platform dimensions (W x D): 220 x 220 mm
Overall dimensions (W x D x H): 245 x 310 x 125 mm
Weight: 5.5 kg
Power supply: 230 V
Protection class: IP 30

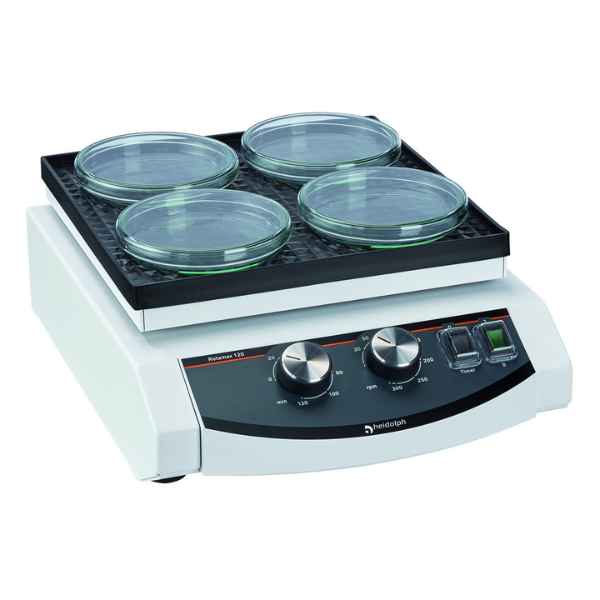

The Heidolph Rotamax 120 is a compact orbital platform shaker designed for efficient mixing in laboratory settings, particularly ideal for culture plates, Erlenmeyer flasks, beakers, and microplates.
Key Features
This space-saving model offers a 20 mm shaking orbit and variable speed control from 20 to 300 rpm, ensuring homogeneous sample distribution even under continuous operation or timed runs up to 120 minutes. Its 220 x 220 mm platform supports a maximum load of 2 kg, with electronic controls including a digital LCD display for precise speed and runtime monitoring, plus soft-start functionality to minimize spills. Integrated overload protection and permanent motor feedback maintain consistent performance, while an RS 232 interface allows compatibility with lab software like labworldsoft® for automated control.
