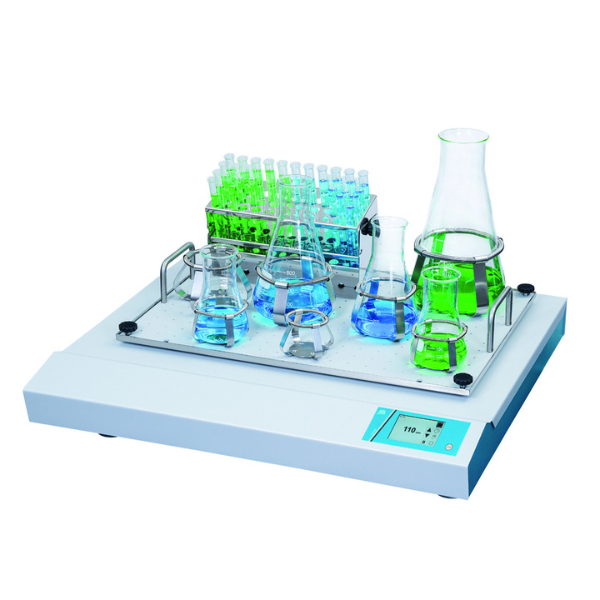

Universal shakers, SM 30 series / SM 30 control
ORDINALS LABS > Products > Bühler > Universal shakers, SM 30 series / SM 30 control

Universal shakers, SM 30 series / SM 30 control

0,00 د.إ

SKU: N/A Categories: , , Tags: , Brand:

Universal shakers, SM 30 series / SM 30 control – LLG09838101

Powerful shakers for large loads. Choice of orbital or reciprocating action models.

Available Options

ThumbnailDescriptionProduct CodeContinuous operationDepthDepth of the moving tableDimensionsHeightInclination angleMax. permitted ambient tempMax. speedMin. permitted ambient tempMin. speedMotor rating inputMotor rating outputNet weightMaximum loadPermitted relative humidityPlug typeProtection classShaking stroke / Shaking orbitTouch operationTypeType of auxiliary energyType of movementWidthWidth of the moving tableMax. Runtime / TimerMin. Runtime / TimerPackaging
Universal shakers SM 30A,orbital moti/1LLG09838101Yes610 mm400 mm580 x 610 x 160 mm160 mmN/A50 °C300 rpm5 °C15 rpmN/AN/A33 kg30 kg85%EUN/A26 mmN/ASM 30 A230 V/50/60 Hz/35 VA.orbitalN/A560 mmN/AN/A1 pz

Description

Universal shakers, SM 30 series / SM 30 control – LLG09838101

Suitable for continuous operation. For analytical or diagnostic processes in biology, chemistry or pharmacy, plant culture or in the food industry, e.g. for transport simulations. Various attachments for different requirements are available as accessories. Programmable controller with Touch-Display and advanced features for control devices.

Scope of supply: supplied with shaking rack and rubber mat.
Attachments required, please order separately.
Speed range: 15 … 300 rpm
stepless, electronic adjustment, control devices in steps of 5
Orbit or travel: 26 mm (A + C models)
30, 46 or 50 mm (B models)
Max. loading: 30 kg
Timer: 0 … 120 min / continuous, control devices programmable / continuous
Platform (W x D): 560 x 400 mm
Overall (W x D x H): 680 x 610 x 160 mm
Weight: 33 kg
Supply requirements: 230 V, 50/60 Hz

Universal shakers SM 30 series SM 30 control

Additional information

Product Code

LLG09838101
Continuous operation

Yes
Depth

610 mm
Depth of the moving table

400 mm
Dimensions

580 x 610 x 160 mm
Height

160 mm
Inclination angle

N/A
Max. permitted ambient temp

50 °C
Max. speed

300 rpm
Min. permitted ambient temp

5 °C
Min. speed

15 rpm
Motor rating input

N/A
Motor rating output

N/A
Net weight

33 kg
Maximum load

30 kg
Permitted relative humidity

85%
Plug type

EU
Protection class

N/A
Shaking stroke / Shaking orbit

26 mm
Touch operation

N/A
Type

SM 30 A
Type of auxiliary energy

230 V/50/60 Hz/35 VA.
Type of movement

orbital
Width

N/A
Width of the moving table

560 mm
Max. Runtime / Timer

N/A
Min. Runtime / Timer

N/A
Packaging

1 pz
