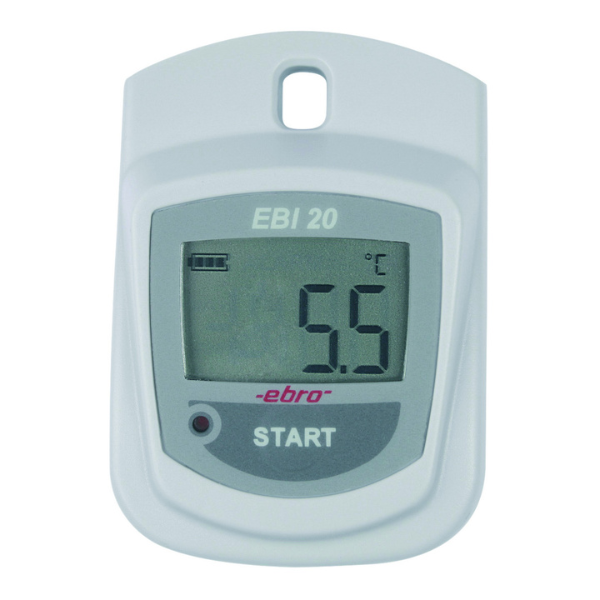

Data Logger EBI 20-T1 / EBI 20-TE1

Description

Data Logger EBI 20-T1 / EBI 20-TE1 –  LLG06228382

Applications:
-Transport
-Storage monitoring
-Refrigeration areas and coldrooms
Features:
-Waterproof
-Visual Alarm
-Max / min values on display
-Stores 40000 readings, can be read off at any time
-Replaceable battery

Scope of supply:
EBI 20-T1: Temperature Logger
EBI 20-T1-Set: Temperature Logger, evaluation software, Interface
EBI 20-TE1: Temperature Logger with external probe
EBI 20-TE1-Set: Temperature Logger with external sensor, evaluation software, Interface
Specifications
Measuring range temperature: -30 to +70 °C
Accuracy temperature: ±0.5 °C (-20 to +40 °C); ±0.8 °C for remaining measuring range
Resolution temperature: 0.1 °C
Memory: 40000 samples
Sensor: NTC
Operating temperature:
Storage temperature: -30 to +70 °C
-40 to +70 °C
Measuring period: 1 minute to 24 hours
Measuring mode: immediate loop measurement, measurement from starting point, start immediately until memory full, start/stop measuring, start when button pressed
Power supply: 3V lithium (CR 2450), can be replaced by user
IP code. IP 67
Housing : ABS
Dimensions (L x W x H): 69 x 48 x 22 mm
Weight: approx. 45 g
