Keyestudio EASY Plug RJ11 6P6C Shield V1.0 for Micro:bit

The BBC micro:bit is a powerful handheld, fully programmable, computer designed by the BBC. It was designed to encourage children to get actively  involved in technical activities, like coding and electronics. It features a 5×5 LED Matrix, two integrated push buttons, a compass, Accelerometer, and Bluetooth. It supports the PXT graphical programming
interface developed by Microsoft and can be used under Windows, MacOS, iOS,

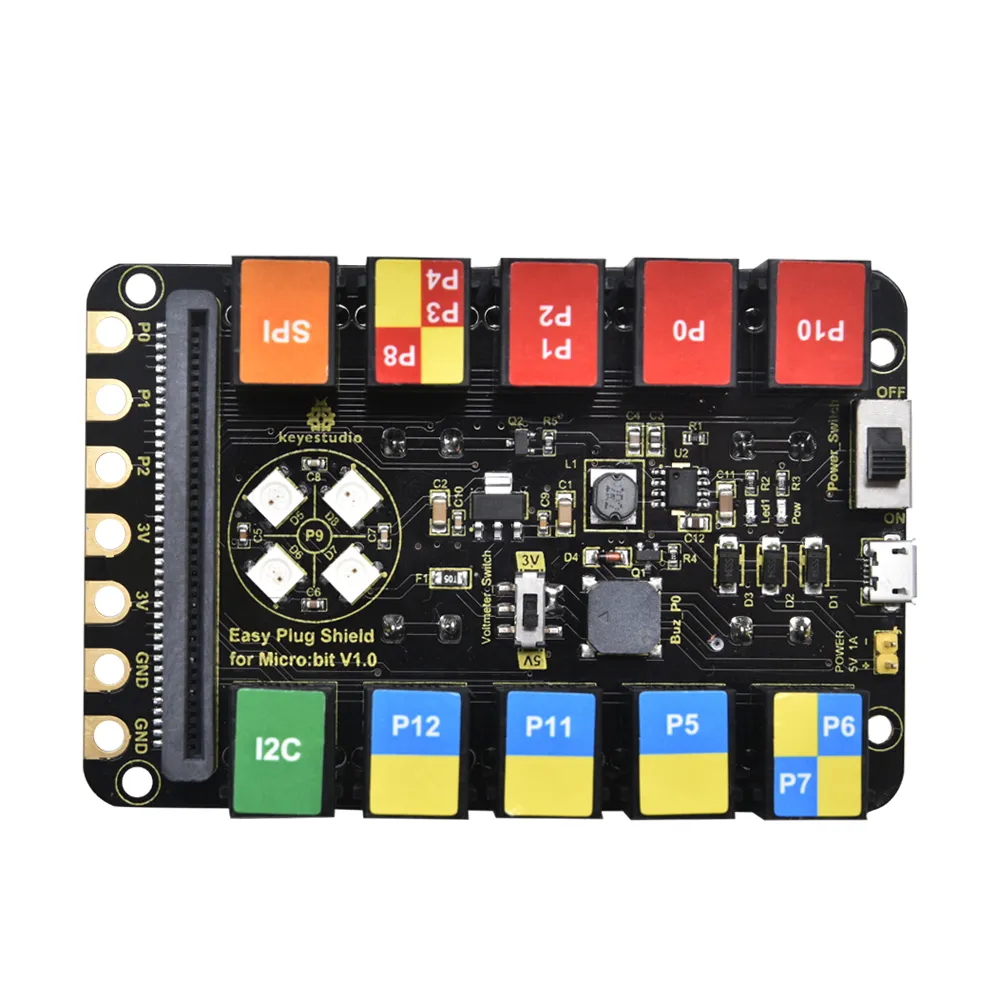

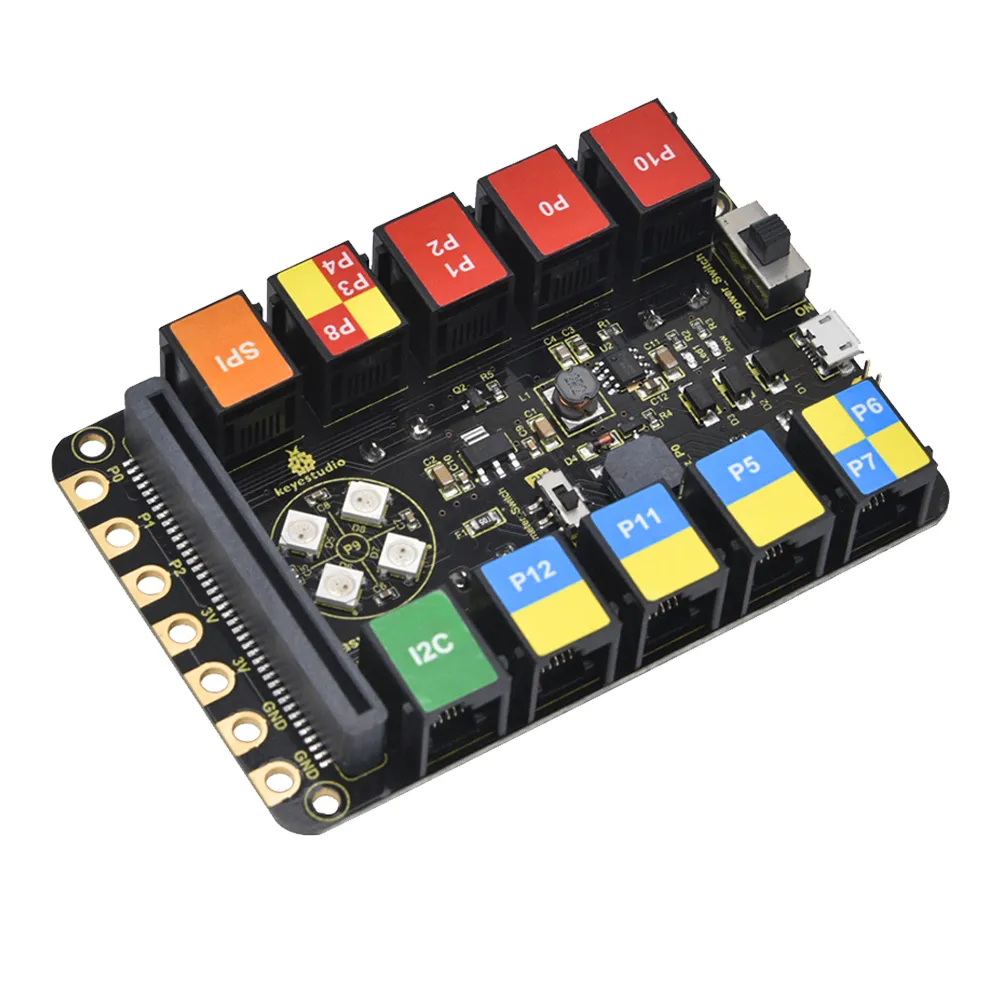

Android and many other operating systems without downloading additional compiler.It’s what you’ve been waiting for, the keyestudio EASY Plug Shield for micro:bit V1.0. It’s pretty easy to insert the micro:bit main board into the EASY Plug Shield for DIY experiments. This EASY Plug Shield has been designed to offer an easy way to connect additional circuits and sensor/module hardware by 7 golden edge connectors or 10 EASY plug interfaces (RJ11-6P6C ) .You can tinker with your EASY Plug Shield for micro:bit without worrying too much about doing something wrong. The EASY Plug Shield comes with 4 WS2812 LEDS, controlled by P9 on micro:bit control board; a Passive buzzer controlled by P0.

Onboard also comes with 2 slide switches; one is Power_Switch for controlling power supply; the other is Voltmeter_Switch for controlling the V-pin voltage (3.3V or 5V) of EASY plug interface.

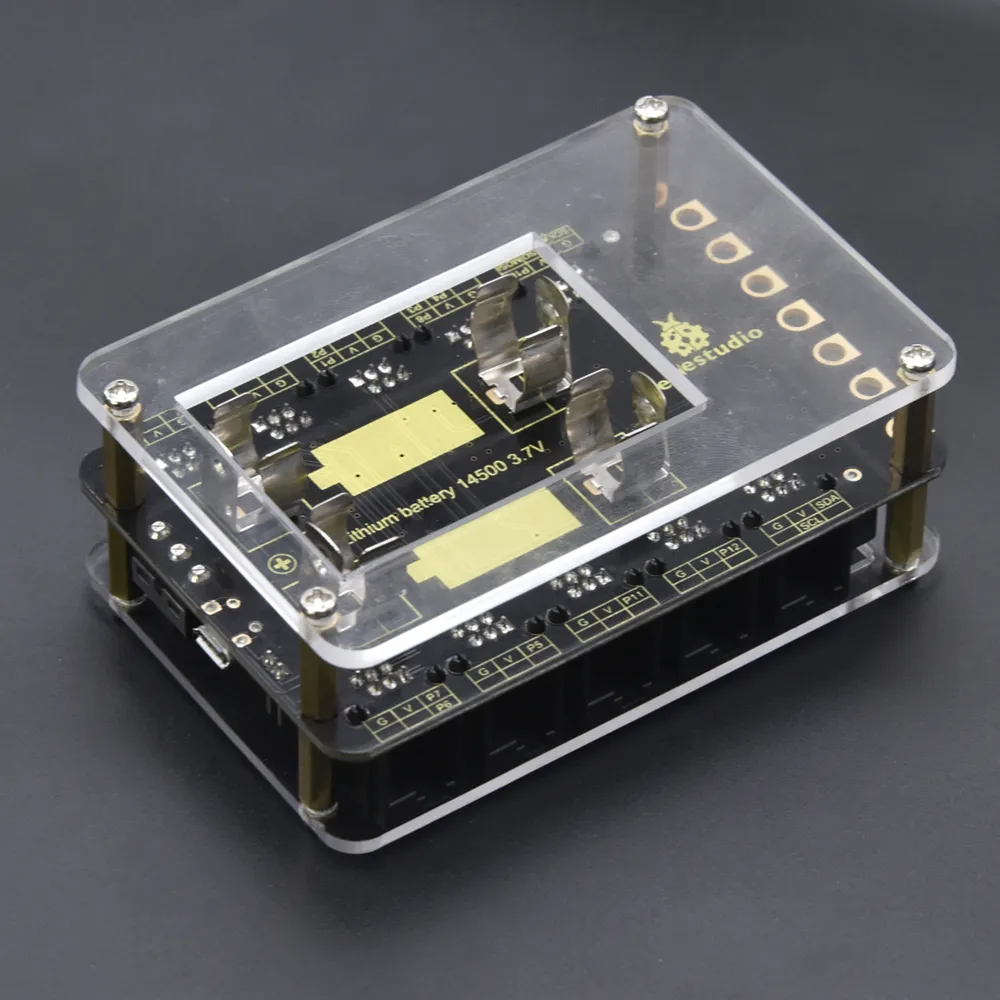

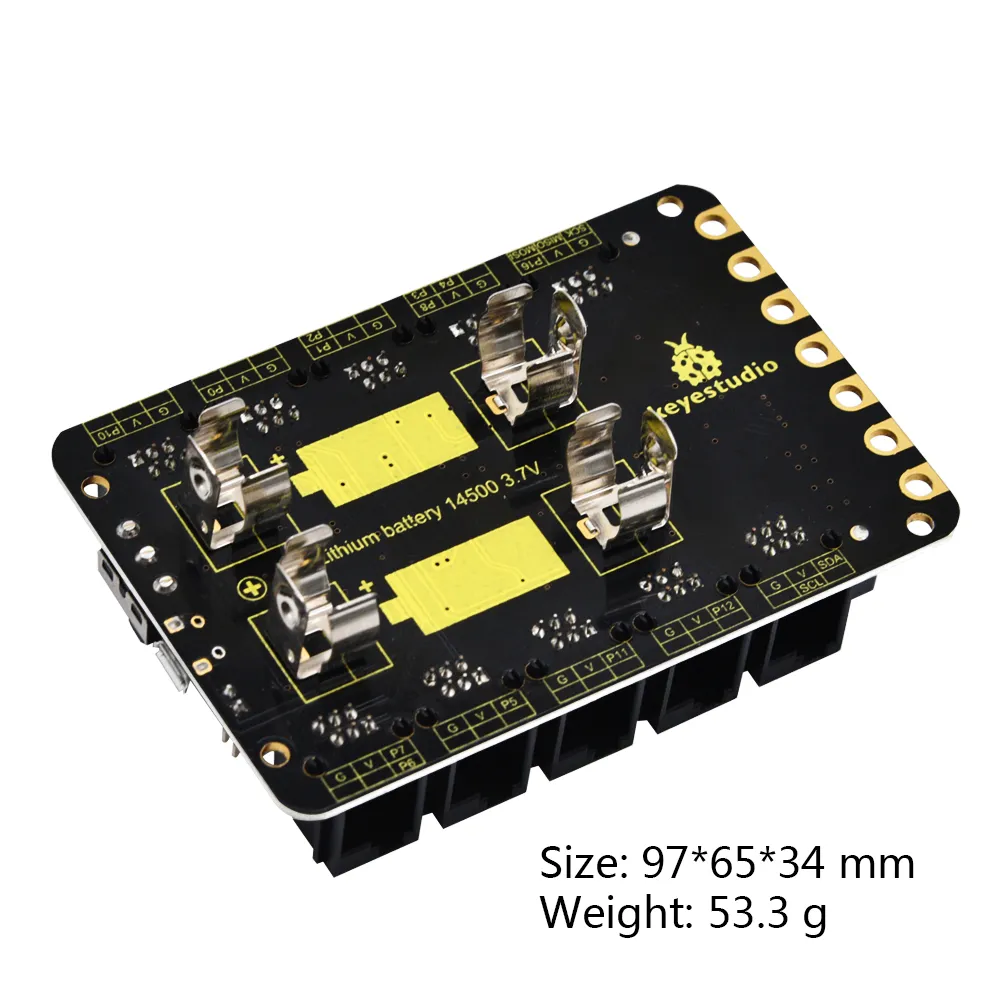

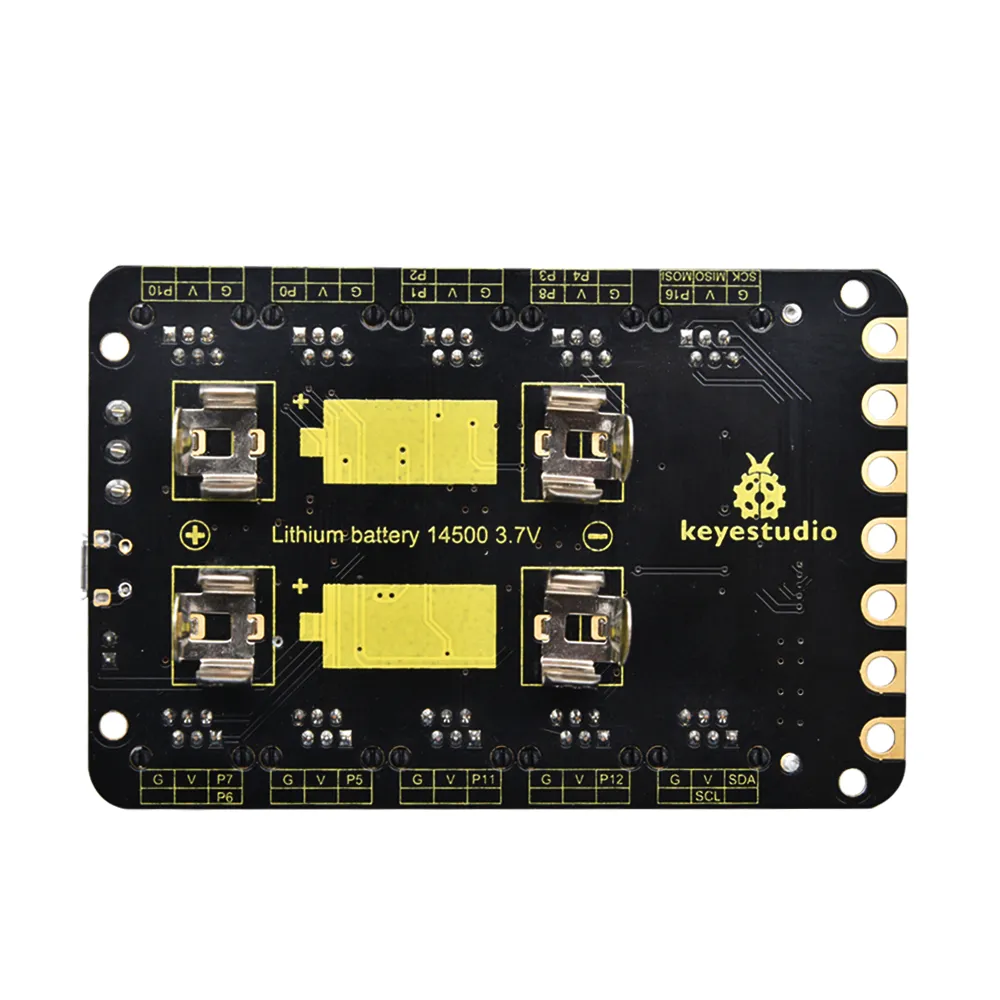

• Direct to connect the two 14500 lithium batteries on the back of EASY Plug Shield;
• Power Supply by micro USB port (5V);
• Connect the two 2.54mm pin headers (POWER) to 5V 1A power supply

You can choose other power supply methods when the 14500 lithium battery runs out of power. Available to charge the 14500 battery. Battery is Not Included in shipping list.

Features :

• Power supply: two 14500 lithium batteries or DC 5V input
• Interface: RJ11 6P6C ; golden edge connectors
• Dimensions: 97mm*65mm*34mm
• Weight:53g
