KS 260 Orbital Shaker Basic Package
Orbital shaker, KS 260 basic/Package / KS 260 control/Package - Image 2
ORDINALS LABS > Products > Orbital shaker, KS 260 basic/Package / KS 260 control/Package

Orbital shaker, KS 260 basic/Package / KS 260 control/Package

(1 customer review)

0,00 د.إ

SKU: N/A Categories: , , Tags: ,

KS 260 Orbital Shaker Basic Package –  LLG09838074

Compact, low-level, platform shaker with highly effective, orbital motion, maximum capacity 7.5 kg. Large selection of attachments enable use with a wide variety of vessel shapes and sizes. Electronic speed control and timer adjustment.

Available Options

ThumbnailDescriptionProduct CodeContinuous operationDepthDepth of the moving tableDimensionsHeightInclination angleMax. permitted ambient tempMax. speedMin. permitted ambient tempMin. speedMotor rating inputMotor rating outputNet weightMaximum loadPermitted relative humidityPlug typeProtection classShaking stroke / Shaking orbitTouch operationTypeType of auxiliary energyType of movementWidthWidth of the moving tableMax. Runtime / TimerMin. Runtime / TimerPackaging

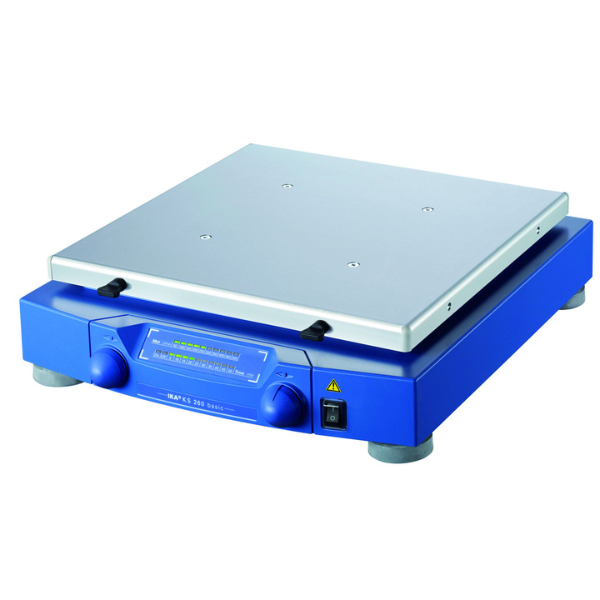

KS 260 Orbital Shaker Basic Package
Orbital shaker KS 260 basicLLG09838074N/A420 mmN/A360 x 420 x 98 mm98 mmN/A50 °C500 rpm5 °C20 rpm45 W10 W8.5 kg7.5 kg80%EUIP 2110 mmN/AKS 260 basic115/230, 50-60 Hzorbital360 mmN/A00:50:00 h:min:sec00:05:00_h:min:sec1 pz

Description

Orbital shaker, KS 260 basic/Package / KS 260 control/Package –  LLG09838074

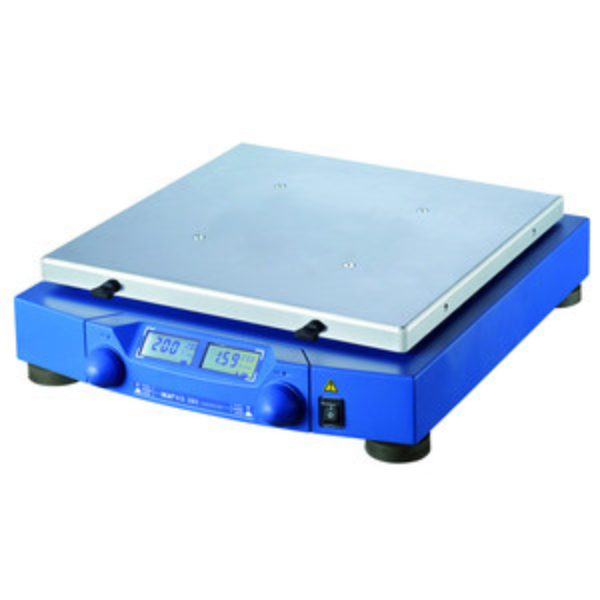

Only Orbital shaker KS 260 control/ Package:
-Separate digital speed and timer displays with operating mode indication
-Timer: 0 to 9 h 59 min or continuous operation
-Controlled stop-point positioning function (enables use in automated robotic sampling routines)
-All functions can be controlled and documented using labworldsoft® software
-Interface: RS 232 / analogue
-Special variant with reverse rotation function available on request

Attachments are not included – Please order separately.
Specifications
Type of movement: orbital
Orbit: 10mm
Max. Load (incl. attachment): 7.5kg
Motor rating input / output: 45 / 10W
Speed range KS 260 basic / KS 260 control: 20 to 500rpm / 10 to 500rpm
Speed indication KS 260 basic / KS 260 control: LED / digital
Timer KS 260 basic / KS 260 control: 5 to 50min / continuous / 1 to 599min / continuous
Dimensions (W x D x H): 360 x 420 x 98mm
Weight KS 260 basic / KS 260 control: 8.5kg / 8.8kg
Housing IP rating to DIN EN 60529: IP21
Interface: RS232 / analogue
Supply requirements: 230V 50/60Hz
Tested to DIN EN IEC 61010-1.

[rank_math_rich_snippet id=”s-3d61acba-7b3d-44ae-9355-15778e3bc275″]

Additional information

Product Code

LLG09838074
Continuous operation

N/A
Depth

420 mm
Depth of the moving table

N/A
Dimensions

360 x 420 x 98 mm
Height

98 mm
Inclination angle

N/A
Max. permitted ambient temp

50 °C
Max. speed

500 rpm
Min. permitted ambient temp

5 °C
Min. speed

20 rpm
Motor rating input

45 W
Motor rating output

10 W
Net weight

8.5 kg
Maximum load

7.5 kg
Permitted relative humidity

80%
Plug type

EU
Protection class

IP 21
Shaking stroke / Shaking orbit

10 mm
Touch operation

N/A
Type

KS 260 basic
Type of auxiliary energy

115/230, 50-60 Hz
Type of movement

orbital
Width

360 mm
Width of the moving table

N/A
Max. Runtime / Timer

00:50:00 h:min:sec
Min. Runtime / Timer

00:05:00_h:min:sec
Packaging

1 pz

1 review for Orbital shaker, KS 260 basic/Package / KS 260 control/Package

  1. user –

    The KS 260 Orbital Shaker Basic Package from Ordinals transformed our small R&D setup. As a retailer, its compact design and reliable 30–500 rpm range handle daily flask cultures effortlessly. Ordinals’ fast support and package value make it unbeatable for small businesses!”
