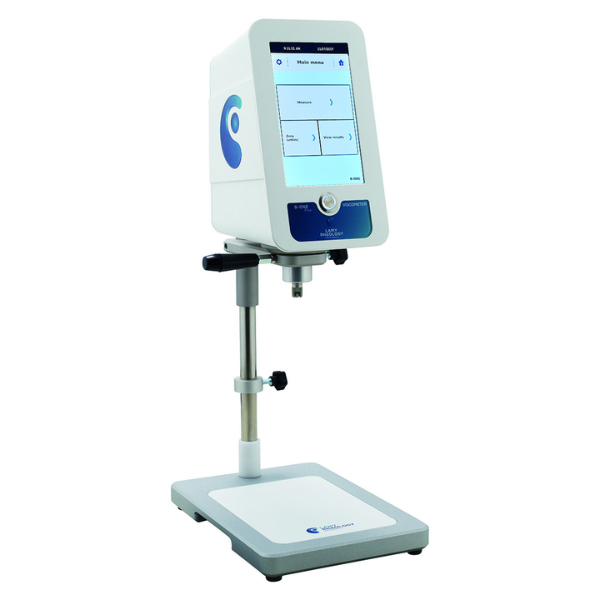

Viscometers B-ONE PLUS / FIRST PLUS

Description

Viscometers B-ONE PLUS / FIRST PLUS –  LLG04659125

Delivery as a single unit or with the spindle sets L1-L4 or R2-R7.
-Measurement at different speeds
-Viscosity range up to 240 000 000 mPas
-7” touch screen
-Different spindle sets
-Easy to use
-Wide range of applications
-Stable stand
-Display settings: viscosity, speed, torque, measuring time, measurement geometry
-Viscosity unit cp or mPas
-Language French, English, Russian, Spain

FIRST PLUS additionally with:
-PT100 for accurate temperature measurement
-Connections for RS232, USB, LAN
-Software optional
Specifications
Rotation speed: 0.3 … 250 rpm
Torque range:
Torque range LR versions: 0.05 … 13 mNm
0.005 … 0.8 mNm
Temperature range FIRST PLUS: -50 … 300 °C
Accuracy: ± 1 % of full scale
Repeatability: ± 0.2 %
Viscosity range B-ONE PLUS
with spindles L1 – L4 / R2- R7:
15 … 22 000 000 mPas / 200 … 240 000 000 mPas
Dimensions head (L x W x H): 180 x 135 x 250 mm
Dimensions stand (L x W x H): 280 x 200 x 30 mm
Rod length: 500 mm
Weight: 6.7 kg
Power supply 90-240 VAC, 50/60 Hz
