Description
Based on programming language, the product uses multiple sensors and modules to realize automated and intelligent management.

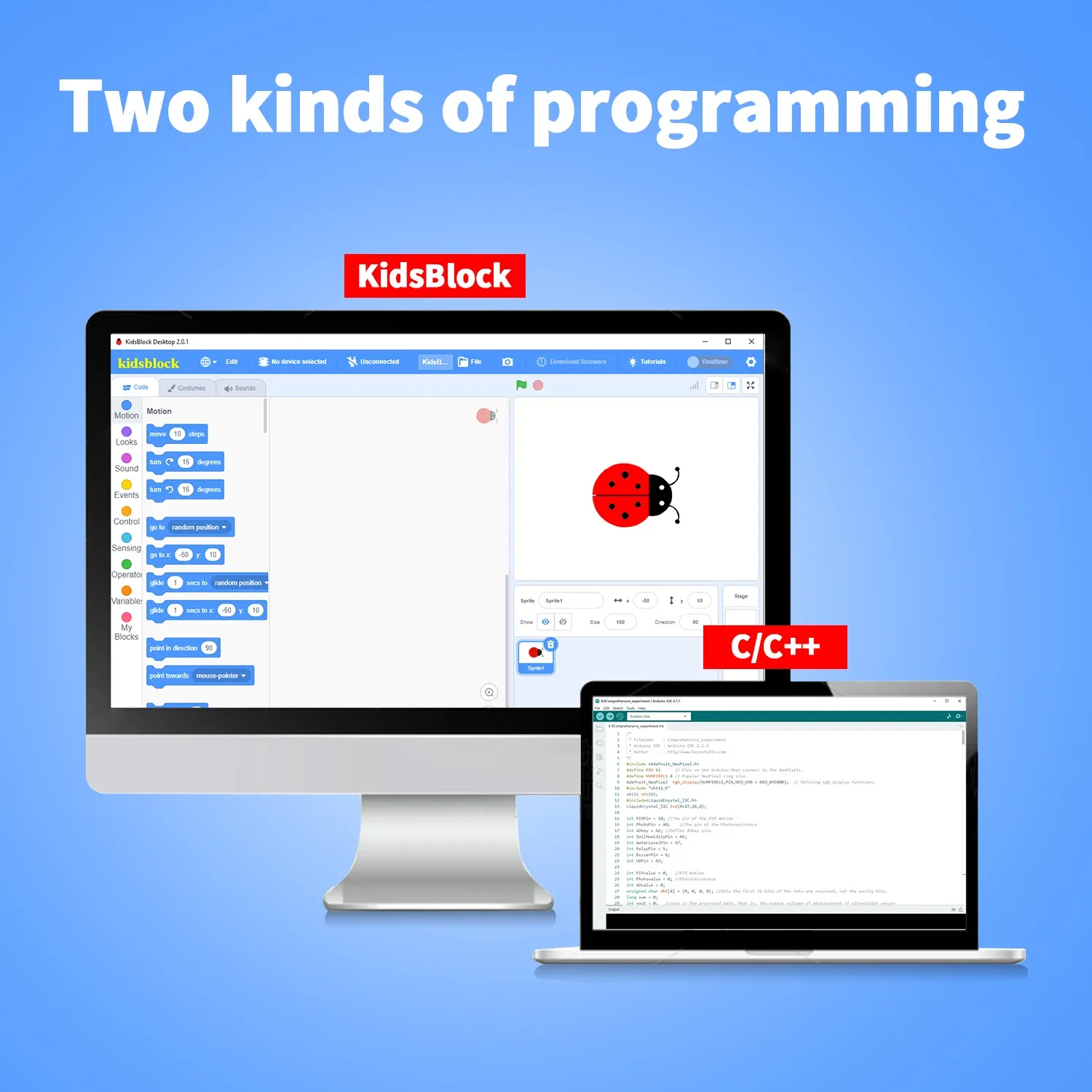

C/C++ and KidsBlock programming languages are provided in tutorials, which contain detailed project introduction, making programming method, logic, and electronic circuit more accessible to you.
Importantly, it not only enhances our hands-on ability but cultivates the awareness of scientific and technological innovation and problem-solving ability, which features strong practicality and creativity.
By the way, the sensors and modules are fully compatible with the PLUS main board ports, and the wires are convenient and easy to use.
If you have any difficulties or questions about this tutorial and toolkit, please feel free to contact us.
Features:
- Integrity: We are able to learn multiple sensors.
- Practicability: Detailed working principles of sensors are provided.
- Innovation: The product can enhance our scientific and technological innovation and problem-solving ability.
- Flexibility: PLUS board offers good flexibility and scalability.
- Interactivity: Experimentation platform and communication communities can be used to share experiences with other learners.
Parameters:
Microcontroller: ATMEGA328P-AU
USB-Serial chip: CP2102
Operating voltage: 5V or 3.3V (dip switch control)
External power: DC 6-15V (9V recommended)
Digital I/O pins: 14 (D0-D13)
PWM channels: 6 (D3, D5, D6, D9, D10, D11)
Analog input channels (ADC): 8 (A0-A7)
DC output capacity per I/O: 20 mA
3.3V port output capacity: 50 mA
Flash Memory: 32 KB (of which 0.5 KB is used for the bootloader)
SRAM: 2 KB (ATMEGA328P-AU)
EEPROM: 1 KB (ATMEGA328P-AU)
Clock speed: 16MHz
Onboard LED pin: D13
