Description

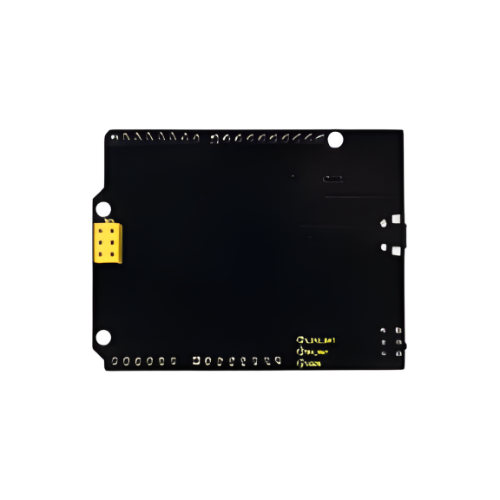

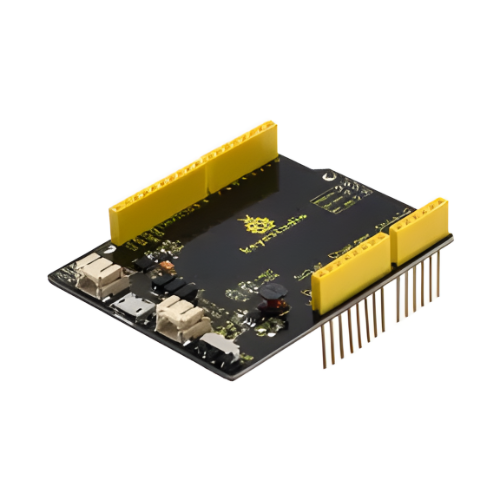

Keyestudio Solar Charger Shield
keyestudio solar charger shield boasts the features of collecting energy, power management and charging, as a stacked shield and compatible with UNO R3 control board. On this shield, BAT interface could output 5V when connected 3.0V-4.2V rechargeable batteries. At same time, the USB interface connected to external power and SOL AR port connected to solar panel can provide power for external batteries. When the DIP is dialed to ON end, external batteries or USB port supply power to UNO R3 board. Moreover, CH LED(red) is on when charge the external battery; OK LED indicator will be on if fully charged.
- Battery input voltage: DC 3.0-4.5V
- USB input voltage: DC 4.75-5.25V
- Solar input voltage: DC 4.8-6V
- Maximum output power (with battery): 3W (600mA@5V)
- Ripple voltage: <100mV @ 500mA
- Size: 73*51mm
- Weight: 19.2g
Is the Keyestudio Solar Charger Shield from Ordinals suitable for powering outdoor commercial projects using solar energy?
Yes, the Keyestudio Solar Charger Shield available at Ordinals is an excellent choice for small business owners, wholesalers, and retailers working on outdoor or off-grid projects. It efficiently manages solar charging and power distribution, making it ideal for applications like environmental monitoring systems, portable devices, and sustainable product solutions.
**Keyestudio Solar Charger Shield** is an efficient and eco-friendly power management solution designed to support Arduino-based projects using solar energy. This shield allows users to harness renewable energy from solar panels or solar cells, making it ideal for sustainable electronics, outdoor applications, and energy-saving systems. It provides a reliable way to charge batteries and power devices, ensuring continuous operation even in remote or off-grid environments.
**Key Features:**
* Supports solar panel and solar cell input for renewable energy usage
* Enables efficient battery charging and power management
* Compatible with Arduino boards for seamless integration
* Provides stable voltage output for connected modules and circuits
* Ideal for outdoor, portable, and low-power applications
* Helps reduce dependency on traditional power sources
* Compact and lightweight design for easy installation
* Suitable for IoT, environmental monitoring, and smart energy projects
* Built for durability and consistent performance
This shield is perfect for developers, students, and businesses looking to create sustainable and energy-efficient solutions. It simplifies solar power integration while maintaining reliable performance, making it a valuable addition to modern electronics projects focused on green technology and innovation.
