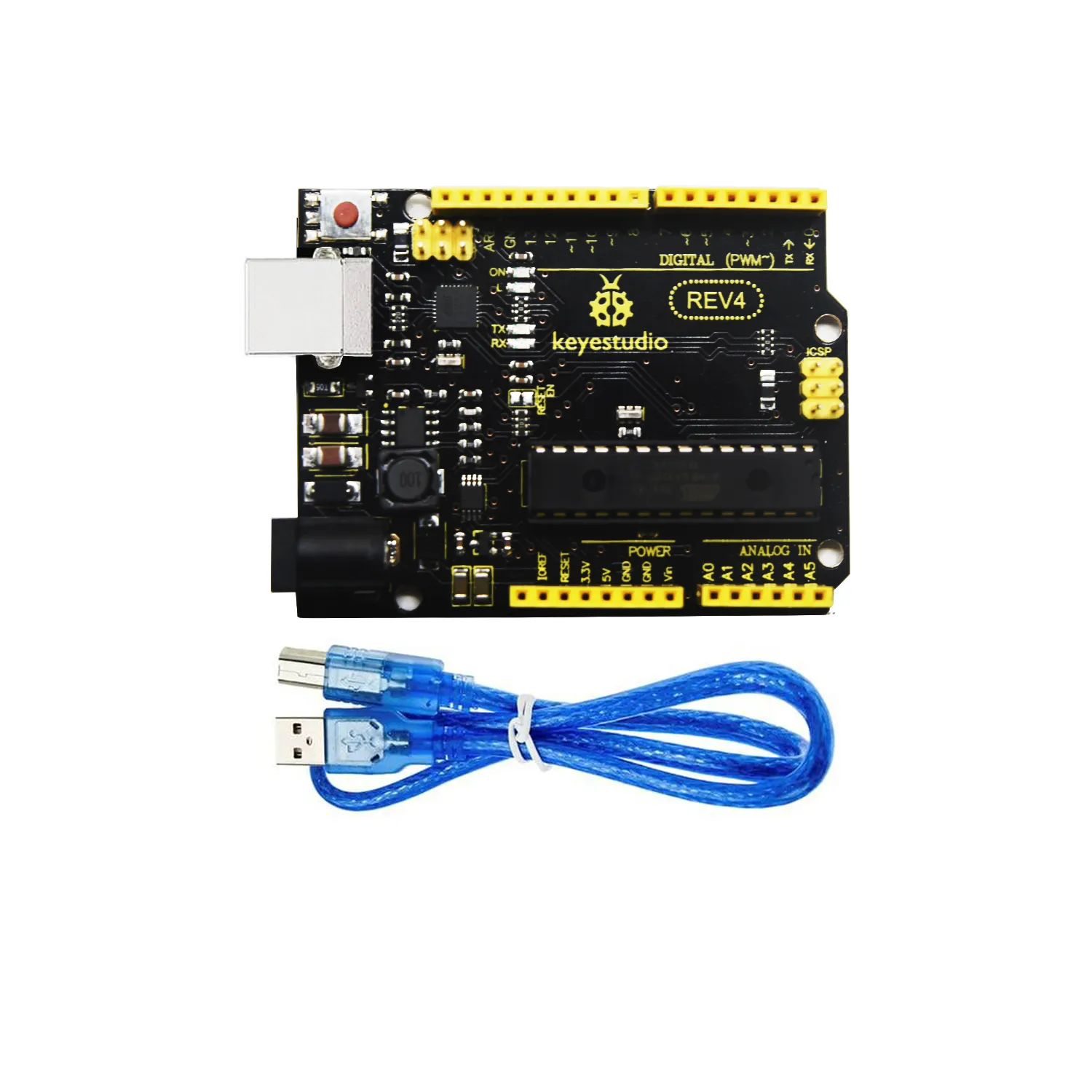

Keyestudio Super UNO R3 Development Board For Arduino +USB Cable

Description

Keyestudio Super UNO R3 Development Board For Arduino +USB Cable

keyestudio UNO compatible board Advanced is a microcontroller board based on the ATmega328P  fully compatible with keyestudio UNO R3 board and ARDUINO UNO REV3.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, 2 ICSP headers and a reset button.
Note that the two ICSP headers are separately used to program the firmware to ATMEGA16U2-MU and ATMEGA328P-PU, but generally the two chips have been programmed well.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it via an external DC power jack (DC 7-12V) or via female headers Vin/ GND(DC 7-12V) to get started.
